Field Sensor Surge Protector
We’ve created a superior line of field sensor surge protection products. Our units protect your electrically sensitive electronics and machinery from electrical voltages and surges currents that can damage or destroy your equipment.

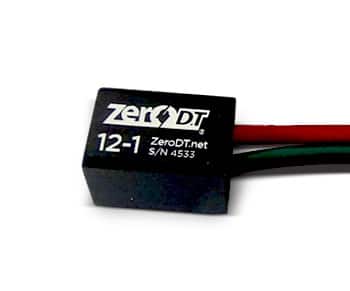

ZeroDT 12-1
12 volt surge protector
The ZeroDT 12-1 is perfect for protecting 12 Volt single loop or 2-wire applications.
- Nominal Voltage: 12 Vdc
- Maximum Continuous Operating Voltage: 18 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 12.4 mm H, 12.4 mm W, 18.9 mm D
- 1 Green Wire: Ground
- 1 Red Wire: Positive/Negative
- 1 White Wire: Positive/Negative
ZeroDT 12-2
The ZeroDT 12-2 is appropriate for protecting 12 Volt two loop or 4-wire applications.
- Nominal Voltage: 12 Vdc
- Maximum Continuous Operating Voltage: 18 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 18.7 mm H, 25.1 mm W, 12.7 mm D
- 1 Green Wire: Ground
- 2 Red Wires: Positive/Negative
- 2 White Wires: Positive/Negative

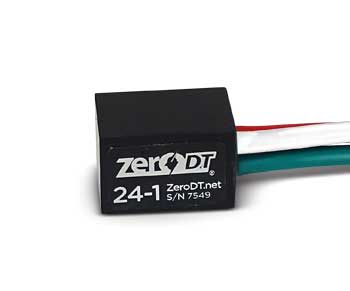

ZeroDT 24-1
The ZeroDT 24-1 was designed for protecting 24 Volt single loop or 2-wire applications.
- Nominal Voltage: 24 Vdc
- Max Cont. Operating Voltage: 36 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 12.4 mm H, 12.4 mm W, 18.9 mm D
- 1 Green Wire: Ground
- 1 Red Wire: Positive/Negative
- 1 White Wire: Positive/Negative
ZeroDT 24-2
The ZeroDT 24-2 is optimised for protecting 24 Volt two loop or 4-wire applications.
- Nominal Voltage: 24 Vdc
- Max Cont. Operating Voltage: 36 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 18.7 mm H, 25.1 mm W, 12.7 mm D
- 1 Green Wire: Ground
- 2 Red Wires: Positive/Negative
- 2 White Wire: Positive/Negative
ZeroDT 48-1
The ZeroDT 48-1 is a single loop or 2-wire protector for 48 Volt applications.
- Nominal Voltage: 48 Vdc
- Max Cont. Operating Voltage: 65 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 18.7 mm H, 25.1 mm W, 12.7 mm D
- 1 Green Wire: Ground
- 1 Red Wire: Positive/Negative
- 1 White Wire: Positive/Negative
ZeroDT 120-1
The ZeroDT 120-1 will protect your single loop or 2-wire applications with voltages up to 120 VAC or 170 Vdc.
- Nominal Voltage: 120 VAC or 170 Vdc
- Max Cont. Operating Voltage: 138 VAC or 195 Vdc
- Nominal Surge Current each line (able to withstand repeated applications):
- 8/20 μs, Line-to-Ground: >600 Amps
- 10/1000 μs, Line-to-Ground: >65 Amps
- 12.7 mm H, 25.1 mm W, 32.1 mm D
- 1 Green Wire: Ground
- 1 Red Wire: Positive/Negative,
- 1 White Wire: Positive/Negative
Superior Surge Protection with Practical Applications
Electrical overvoltage transients can happen at any time and are not just from lightning. Overvoltage transients can be caused any time electrical current is switched off or on. Compressors, motors, pumps and HVAC, are just a few examples of equipment that can generate large transients, and couple this with grid switching, equipment failures and human error your equipment exists in a harsh environment. Lightning discharges (even more than a mile away) can induce overvoltage transients into the wires and conductors themselves via electromagnetic waves (think radio waves). What that means is that you can find your critical automation and process control equipment and machinery experiencing surges that can easily damage and destroy it, bringing on a system shutdown.
ZeroDT “Zero Down Time” utilizes non-degrading Silicon Avalanche Suppression Diode (SASD) technology to combat these overvoltages. Competitive products that utilize Gas Discharge Tubes (GDTs) or Metal Oxide Varistors (MOVs) or combinations, but they degrade with every surge or transient that comes down the line. They may work well on the day they are installed but usage takes its toll and your equipment is eventually damaged or destroyed. With ZeroDT’s SASD protection technology, that worry goes away – your equipment has the same level of protection five years down the road that it did on day one. Another advantage of the SASD protection technology is that it has the response time capability to react to those lightning-fast events (no technology is faster). At ZeroDT, we’ve created advanced field-deployed products that help ensure you don’t experience electrical equipment damage and system downtime.
Speak with a ZeroDT specialist to find the perfect solution for your industrial and commercial applications. We’ll set up a consultation with you to better protect your equipment and reduce the chance of system downtime.
Take Advantage of a Powerful Surge Protection Device
There is more to look at than the cost of your equipment to be replaced: planning, engineering, and the labor cost to commission your process, not to mention the loss of revenue with a shutdown. ZeroDT specializes in specifying overvoltage surge protection for any process or application.
ZeroDT has found a niche in multiple different industries protecting delicate instrumentation. Any industry that uses remote measurements or controlled devices can be susceptible to lightning-induced overvoltage transients into the field cables. Those remote/field devices need overvoltage protection, and ZeroDT field protectors are designed to be small enough to mount inside the equipment you want to protect. Real estate is key.
When it comes to surge protection, the rule of thumb is to mount your surge protection device or SPD as close to the protected equipment as possible. As wire length is time and voltage – you need to respond to overvoltages FAST and you need to keep the voltages as low as possible.
- Non-degrading SASD technology
- Response time of fewer than 5 nanoseconds
- Suitability for multiple communications and power applications (both analog and digital)
- Repeatable voltage clamping levels
- Small form factor allows mounting inside the transmitter enclosure for optimal protection
- Suitable for use in hazardous locations (Class 1, Div 2)
With all those benefits, ZeroDT provides you with the superior technology in a design that is optimized for providing protection in your application. With your new ZeroDT device, your equipment is protected from overvoltages and damage of those surge currents.
Powerful Surge Protection Devices for Every Application
ZeroDT offers a wide range of surge protection devices (SPD). There are many different voltages and uses to protect circuits, which is why we’ve created an SPD for each situation you might encounter. Choose from a surge protector that works for your unique needs or work with us to develop a custom solution.
Find the Perfect Surge Protector for Your Industrial and Commercial Applications
At ZeroDT, our job is to protect your equipment and help eliminate system downtime. We can help you choose one of our standard products or customize a design to fit your needs. Schedule a consultation and speak with a specialist about surge protection for your application.
